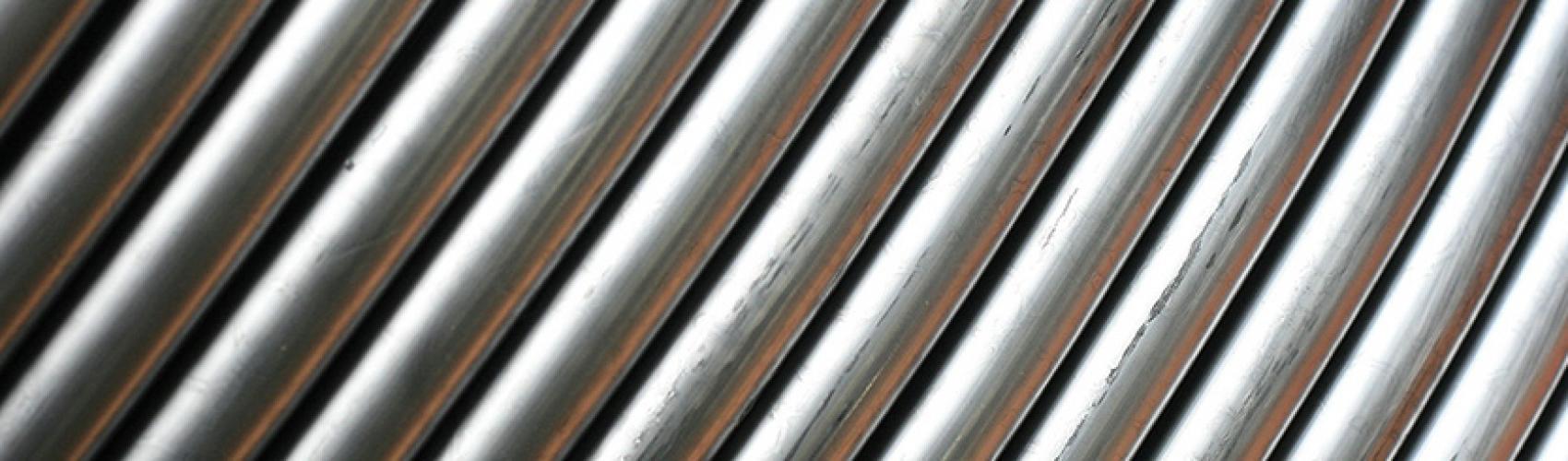

Aluminium Rods

Type Applicable Standard
1350 ASTM B-230 , ASTM B-233 , IEC 207
1120 AS - 1531
6101 , 6201 ASTM B-398 , IEC 208
6061 , 6162 ASTM B-308 , AS 1865


Other type standards are available upon customer's request



SPECIFICATION
Type Temper Diameter
mm2
Ultimate Tensile Strength
Ksi
Ultimate Tensile Strength
Mpa
(N/mm2)
Ultimate Tensile Strength
Kg/mm2
Elongation
%
Resistivity
Ohm.mm/m
Conductivity
% IACS
Purposes
A
Purposes
B
Purposes
C
1070 - 7.6 , 9.5 , 12 12.0 - 17.0 83 - 117 8.5 - 11.9 8 0.027899 61.8
1120 H12 7.6 , 9.5 17.4 - 26.1 120 - 180 12.2 - 18.3 5 0.029220 59.0
1350 O 7.6 , 9.5 , 12 8.5 - 14.0 59 - 97 6.0 - 9.9 8 0.027899 61.8
1350 H12 7.6 , 9.5 , 12 12.0 - 17.0 83 - 117 8.5 - 11.9 8 0.028035 61.5
1350 H14 7.6 , 9.5 , 12 15.0 - 20.0 103 - 138 10.5 - 14.1 6 0.028080 61.4
1350 H16 7.6 , 9.5 , 12 17.5 - 22.0 117 - 152 11.9 - 15.5 6 0.028126 61.3
6061 T81 & T91 ≤ 7.6 *> 7.6 ** 52.2049.30 360340 36.7034.70 57 0.0478900.047890 36.036.0
6101 T4 7.6 , 9.5 21.7 - 30.4 150 - 210 15.3 - 21.4 8 0.033156 52.0
6162 T81 & T91 ≤ 7.6 *> 7.6 ** 46.9642.03 324.00290 33.0329.56 57 0.0478900.047890 36.036.0
6201 T4 7.6 , 9.5 26.1 - 34.8 180 - 240 18.3 - 24.3 8 0.033478 51.5


Note:
- Other type can be manufactured as per customer request
- (*) : Hard Drawn wire minimum Φ 2.95 mm
- (**) : Hard Drawn wire minimum Φ 9.27 mm
- A : Electrical Conductor
- B : High Mechanical
- C : Deoxidant



PACKING
MATERIALS DIAMETER mm COIL WEIGHT Kgs COIL DIMENSION Type ID OD H
ALUMINIUM 12 1000 - 1200 Compacted Coil 550 1100 850
ALUMINIUM 9.5 1500 - 2000 Compacted Coil 550 1500 850
ALUMINIUM 7.6 1500 - 2000 Loose Coil 600 2000 1500
ALUMINIUM ≤7.6* 700.00 Compacted Coil 550 900 850
ALUMINIUM > 7.6** 350.00 Wooden Reel 950 - 950 700


IDENTIFICATION : Coil Serial Number, Production date, Material Designation,Weight, Tensile Strength, Elongation and Conductivity

Note : Other type of Packaging will followed as per customer request
